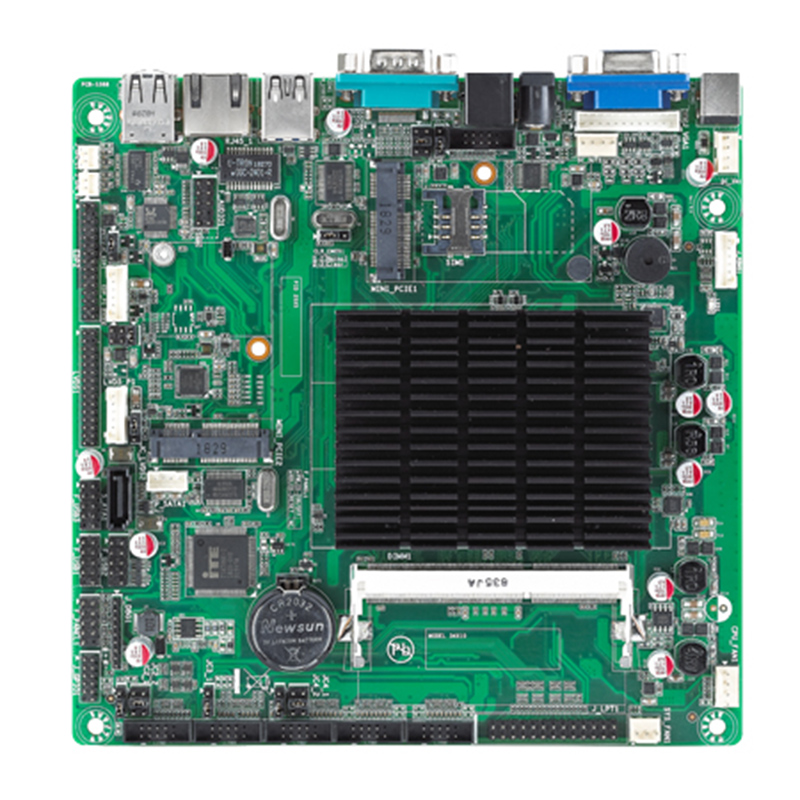

Intel Celeron J1900處理器, 6*COM, 9*USB, 1*LAN, 1*RJ11, 支持雙(shuang)eDP顯示, 薄型Mini-ITX
采(cai)用(yong)Intel Bay Trail Celeron J1900處(chu)理器
6*COM, 9*USB, 1*千(qian)兆網口, 1*錢箱接口RJ11
1*VGA, 1*HDMI/eDP, 1*LVDS/eDP, 支持雙eDP獨立(li)顯(xian)示
2*Mini-PCIe支持mSATA和Wifi/3G/4G
薄型Mini-ITX, DC 12V供電
General
CPU:Intel® Celeron® J1900 CPU, Quad-core, up to 2.42 GHz, TDP 10W
Memory:DDR3L-1333, 1*SO-DIMM, up to 8 GB
Storage:1*SATA 2.0, 1*mSATA
Expansion Interface:2*Mini-PCIe (1*mSATA, 1*Wifi/3G/4G supported)
BIOS:AMI UEFI BIOS
System:Windows 7/8.1/10, Linux

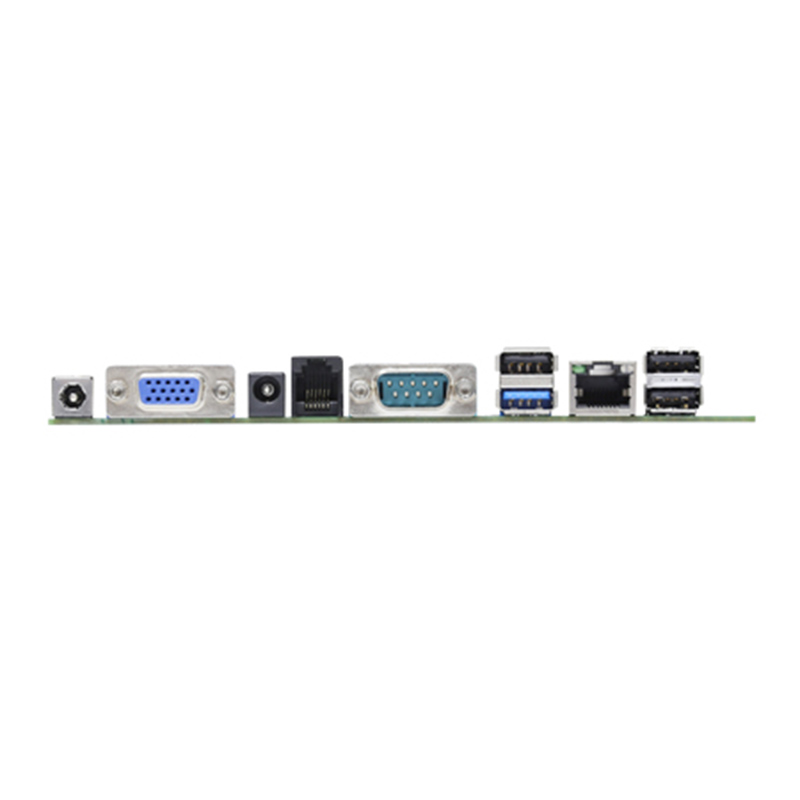

I/O Interface
Ethernet:1*Realtek® 1Gbps PCIe Ethernet Controller, RJ45
Serial:6*RS232
USB:1*USB 3.0, 8*USB 2.0
Audio:Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out and Amplifier
PS/2:1*PS/2 Header (Keyboard & Mouse)
Parallel:1*LPT Header
GPIO:8*Programmable GPIO
Feature Interface:1*Cash Drawer Control Port, RJ11
Display
Display Interface:1*VGA: max resolution up to 2560*1600@60Hz, 1*LVDS/eDP: LVDS, Dual Channel 24 bit, max resolution up to 1920*1200@60Hz, eDP, max resolution up to 1920*1200@60Hz, 1*HDMI/eDP: HDMI, max resolution up to 1920*1200@60Hz ,eDP, max resolution up to 1920*1200@60Hz
Multiple Display:Dual
Mechanical & Environment
Dimension:170*170mm
Power Input:DC 12V
Temperature Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity Operation: 10%~90%, Storage: 5%~95%, non-condensing
