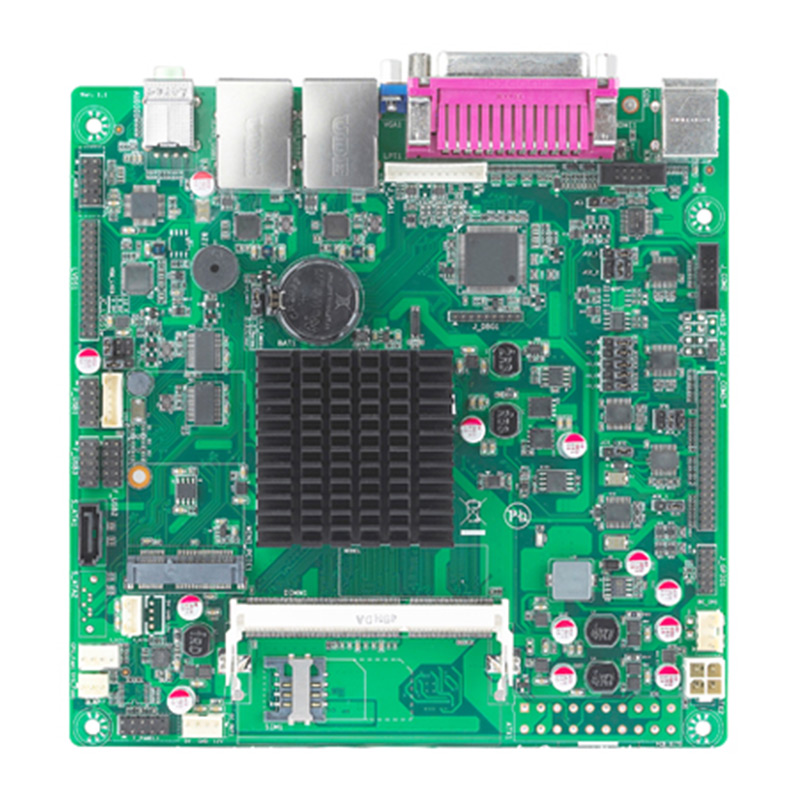

LX-19026P(1)

Intel Celeron J1900處理器, 6*COM, 9*USB, 2*LAN, 1*Mini-PCIe

采(cai)用(yong)Intel Bay Trail Celeron J1900處(chu)理器

6*COM, 9*USB, 2*千兆網口

1*VGA, 1*HDMI, 1*LVDS, 支持(chi)雙屏異(yi)顯

1*Mini-PCIe可選支持mSATA/Wifi/3G/4G

Mini-ITX, DC 12V供電

驅動/資料下載

規格

General

CPU：Intel® Celeron® J1900 CPU, Quad-core, up to 2.42 GHz, TDP 10W

Memory：DDR3L-1333, 1*SO-DIMM, up to 8 GB

Storage：1*SATA 2.0, 1*mSATA

Expansion Interface：1*Mini-PCIe (mSATA/Wifi/3G/4G supported)

BIOS：AMI UEFI BIOS

System：Windows 7/8.1/10, Linux

I/O Interface

Ethernet：2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45

Serial：4*RS232, 1*RS232/RS485, 1*RS232/TTL

USB：9*USB 2.0

Audio：Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out

PS/2：2*PS/2 Port (Keyboard & Mouse)

Parallel：1*LPT Port

GPIO：8*Programmable GPIO

Display

Display Interface：1*VGA: max resolution up to 2560*1600@60Hz ,1*HDMI: max resolution up to 1920*1200@60Hz ,1*LVDS: Dual Channel 24 bit, max resolution up to 1920*1200@60Hz

Multiple Display：Dual

Mechanical & Environment

Dimension：170*170mm

Power Input：DC 12V

Temperature：Operation: 0℃~60℃, Storage: -25℃~75℃

Relative Humidity：Operation: 10%~90%, Storage: 5%~95%, non-condensing
